BW Packaging's Harland Top and Bottom (TBL 300 Series) Pressure Sensitive Labelers

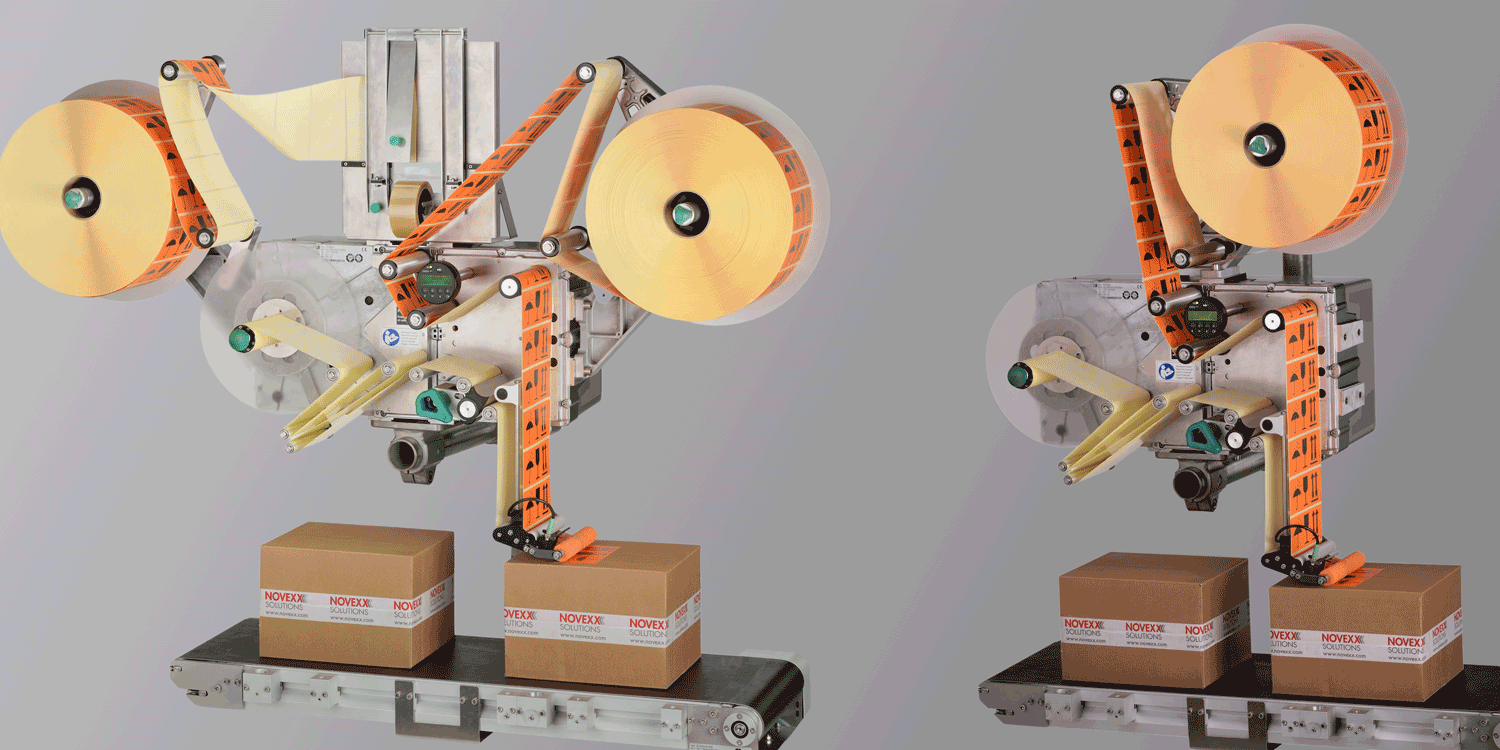

Harland TBL 300 Series Pressure Sensitive Labelers

About Harland Top and Bottom (TBL 300 Series) Pressure Sensitive Labelers

The Harland TBL 300 Series top and bottom labelers from BW Packaging offer an efficient solution for labeling the tops, sides, or bottoms of products. Designed as wipe-on applicators, these labelers can also perform corner wraps and side stamps. They can easily integrate with your existing packaging line or be provided with custom-designed product handling systems from BW Packaging.

These high-performance machines offer exceptional versatility, capable of applying a variety of pressure-sensitive labels, including thin films, clear films, hang-tabs, sensormatic/checkpoint tags, coupons, and booklet-style labels. With advanced web control, the labelers ensure precise label placement every time.

The user-friendly rotatable operator interface allows for easy operation, whether you're right or left-handed. Thanks to their modular design, these labelers can be configured to meet specific application needs, and with three drives, they offer both speed and accuracy.

Additional features include a 400 mm (16”) power-assisted label roll unwind with tension control, a stepper drive for consistent label feeding, and an innovative collapsible rewind for swift waste liner removal. The built-in microprocessor provides auto-diagnosis and status messages for seamless monitoring, while optional connectivity options like Ethernet and USB make remote setup and parameter backup simple.

Choose BW Packaging’s Top and Bottom Labelers to enhance your labeling process with reliability and flexibility!

Product Details

Wide range of label width & length adjustment
16”/400mm diameter label roll capacity with built in label roll OD sensor & advanced label web tension control
Dual nip drive and label “push” roller for precise and consistent label feed
Independently driven, collapsible rewind for quick easy removal of the waste paper
Microprocessor with built-in applicator controls, auto diagnosis and auto set-up of the label sensor and label pitch
General error signal to indicate end of labels, missing label on web & no gap found

Technical Data

Options

Blow-on, Tamp-blow, Swing-arm, and Corner-wrap applicators
Shaft encoder for automatic speed following
Remote operator interface
Label coders such as SmartDate or DataFlex thermal transfer printers
Ultrasonic label sensor for clear labels
Alarm package with three-color light stack
Kits to run hang-tabs, checkpoint, or sensormatic tags
IP54 rating for wet or dusty environments
Custom-engineered product handling solutions

Packaging Styles

Videos

Parts & Service

OEM parts and experienced Customer Service are key to maintaining the integrity and service of your equipment. We offer spare and replacement parts for all of our product lines, as well as a dedicated team of professionals who provide global support, delivered locally. If you need support, contact our team and a dedicated support professional will respond to your request.
