6128 Gross Weigh Bagging Scale
About 6128 Gross Weigh Bagging Scale

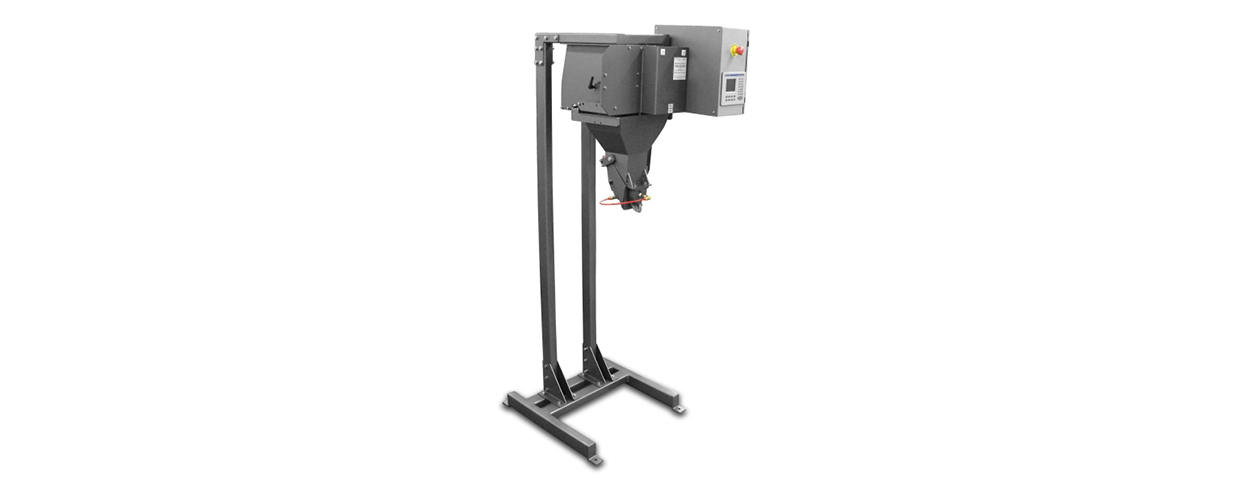

The Thiele 6128 Gross Weigh Scale provides accurate weighing of granular free-flowing products. The computer-controlled system makes operation simple and product changeovers fast and easy.
Two-stage weighing system is standard, as is automatic weight compensation.
Product Details
The Thiele 6128 Gross Weigh Scale provides accurate weighing of granular free-flowing products. The computer controlled system makes operation simple and product changeovers fast and easy.
Two-stage weighing system is standard, as is automatic weight compensation.
Key Benefits
- Two-stage weighing system
- Automatic weight compensation
- Fast, easy, and trouble-free operation
- User-friendly Allen-Bradley control platform
- Change weights or weight measurements at the touch of a button
- Available with standard or corrosion-resistant construction
Features
- Direct-mounted platform style load cell for precise measurements between 20 and 110 pounds (9-50 kg)
- Flex link-free
- Fast-stabilizing measuring
- Adjustable bulk and dribble flow vanes
- Clamshell style bag holder
- Microprocessor systems to control, update and monitor weighing operation
- Capable of integration with automatic bag hangers
Technical Data
Production Rate
Up to 12 bags per minute
Dimensions
Depth: 886.4 mm (34.9")
Width: 711.2 mm (28")
Height: 2082.8 mm (82")
Accuracy
28-85 grams (1 to 3 oz)
Power Requirements
Input Power: 230/460V, 3-phase, 60 hz
Control Circuit: 24 Volt DC from internal power supply
Current Draw: 230 volt (20 amps), 460 volt (10 amps)
Air Requirements
Operating Pressure: 80 psi (5.4 atm)
Line Pressure: 90 psi (6.1 atm)
Air Use per Cycle: 2.0 scf (55 liters) free air per cycle
Options
Packaging Styles

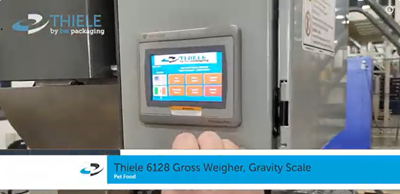

Videos
Parts & Service
OEM parts and experienced Customer Service are key to maintaining the integrity and service of your equipment. We offer spare and replacement parts for all of our product lines, as well as a dedicated team of professionals who provide global support, delivered locally. If you need support, contact our team and a dedicated support professional will respond to your request.
-
