Swinger Bag Filling System
About Swinger Bag Filling System

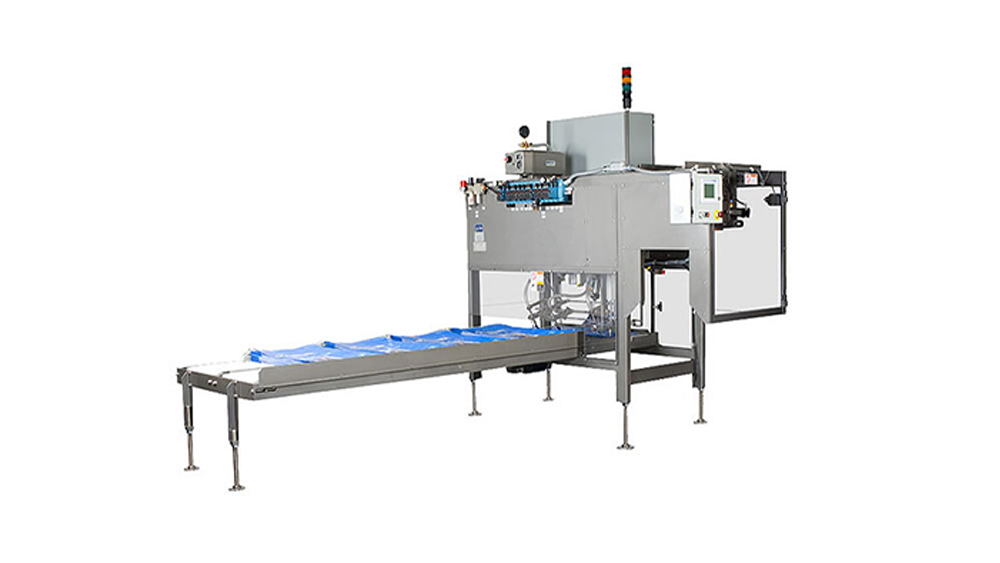

The Thiele Swinger Bag Filling System automatically hangs heavy-duty flat tube or gusseted open-mouth poly, paper, or poly woven bags. Featuring a “traveling” bag spout that moves to meet the bag pickup assembly, the Swinger Bag Filling System offers speeds up to 18 bags per minute (7107 Swinger) for fully automatic operation or 20 bags per minute for semi-automatic operation (7105 Swinger).
Our Thiele Bag Filling System delivers several key benefits to your bag filling operation.
Key Benefits
- Easily accessible controls
- Simple operation
- Reduced downtime
- Increased accuracy
Product Details
Features
7105 Swinger
- Semi-automatic operation
- Large, easy-to-load magazine requiring no shutdown for reloading
- Bag magazine automatically indexes the next stack of bags
- Automatic no-bag/no-product sensing device prevents product discharge unless a bag is in place
- Adjustable loading tray for accurate bag spouting
- Quick and easy adjustments for bag size changes
- Low-profile design integrates with most scales
- Allen-Bradley PLC with HMI
- NEMA 12 electrical construction
7107 Swinger
- Fully automatic operation
- Accommodates many types of bags
- Traveling bag spout increases speed up to 20 bags per minute
- Large, easy-to-load magazine with no shutdown for reloading
- Bag magazine automatically indexes the next stack of bags
- Automatic no-bag/no-product sensor prevents the scale from dumping product unless a bag is in place on the holder
- Electro-pneumatic controls require little maintenance
- Quick and easy adjustments for bag size changes
- Low profile, easily integrates with most scales
Technical Data
Technical Data Comparison
| 7105 Swinger | 7107 Swinger | |
|---|---|---|
| Production | ≤20 bpm | ≤18 bpm |
| Bag Sizes | Face Width: Gusset: 355.6 – 508 mm (14" – 20") Flat Tube: 355.6 – 609.6 mm (14" – 24") | Face Width: Gusset: 254 – 558.8 mm (10" – 22") Flat Tube: 305 – 609.6 mm (12" – 24") |
| Bag Lengths | Gusset: 635 – 1041.4 mm (25" – 41") Flat Tube: 635 – 1041.4 mm (25" – 41") | Gusset: 635 – 1016 mm (25" – 40") Flat Tube: 635 – 1016 mm (25" – 40") |
| Power Requirements | Input Power: 240/480 VAC, 3-phase, 60 Hz, 30/15 amps Control Circuit: 24 VDC from internal power supply Current Draw: 240 volt (10 amps), 480 volt (5 amps) | Input Power: 240/480V, 3-phase, 60 hz, 30/15 amps Control Circuit: 24 VDC from internal power supply Current Draw: 240 volt (10 amps), 480 volt (5 amps) |
| Air Requirements | Operating Pressure: 80 psi (5.4 atm) Line Pressure: 90 psi (6.1 atm) Air Use per Cycle: 1.0 cubic ft (28.32 liters) | Operating Pressure: 80 psi (5.4 atm) Line Pressure: 90 psi (6.1 atm) Air Use per Cycle: 1.0 cubic ft (28.32 liters) |
Options
A few of the many available options include:
- The spout can be sized to the bag for maximum speed
- Corrosion-resistant construction
- Right or left-hand layout available to fit space requirements
- Customized magazine lengths and widths
- Dust collection nozzles
- Scales / PLC scale control
- HMI maintenance reminder banners
- Ethernet connection
- Servo bag to tray
- Servo tray to spout
- Robotic reformer available
- Vee-Trof available
Packaging Styles
Videos
Parts & Service
OEM parts and experienced Customer Service are key to maintaining the integrity and service of your equipment. We offer spare and replacement parts for all of our product lines, as well as a dedicated team of professionals who provide global support, delivered locally. If you need support, contact our team and a dedicated support professional will respond to your request.
-
